2019+ Silverado 1500 Bolt Pattern & Wheel Fitment Guide
August 24, 2026
2019+ Silverado 1500 Fitment Guide: Bolt Pattern, Wheel & Tire Sizes
August 2026Every 2019+ Silverado 1500 runs a 6x139.7 bolt pattern (6x5.5"), a 78.1mm hub bore, and M14x1.5 lug nuts, with factory wheels spanning 17-inch steelies on the Work Truck to 22s on the top trims. Same pattern and bore as the 2014-2018 truck, so wheels swap between generations. The aftermarket sweet spots: 20x9 +20 on 275/60R20 for stock height, 33s with a level, and 35s on a 4-to-6-inch lift.
So you own or just picked up a current-gen Silverado, and now comes the fun part: making it yours. Here's everything that fits, organized by suspension setup, with proven combinations from real customer builds at every height.
Factory Specs That Matter
| Spec | 2019+ Silverado 1500 |
|---|---|
| Bolt pattern | 6x139.7mm (6x5.5") |
| Hub bore | 78.1mm |
| Lug nuts | M14x1.5 (aftermarket wheels usually need aftermarket lugs; see the lug guide) |
| Factory wheel range | 17" (Work Truck) through 20" and 22" (higher trims) |
| Aftermarket range | 18" to 24" commonly run |
Handy cross-generation fact: the 2014-2018 Silverado shares the same pattern and bore, so wheels move between the two trucks freely (offsets and tire clearances still differ by setup). If offset numbers still read like algebra, the offset explainer fixes that in five minutes.

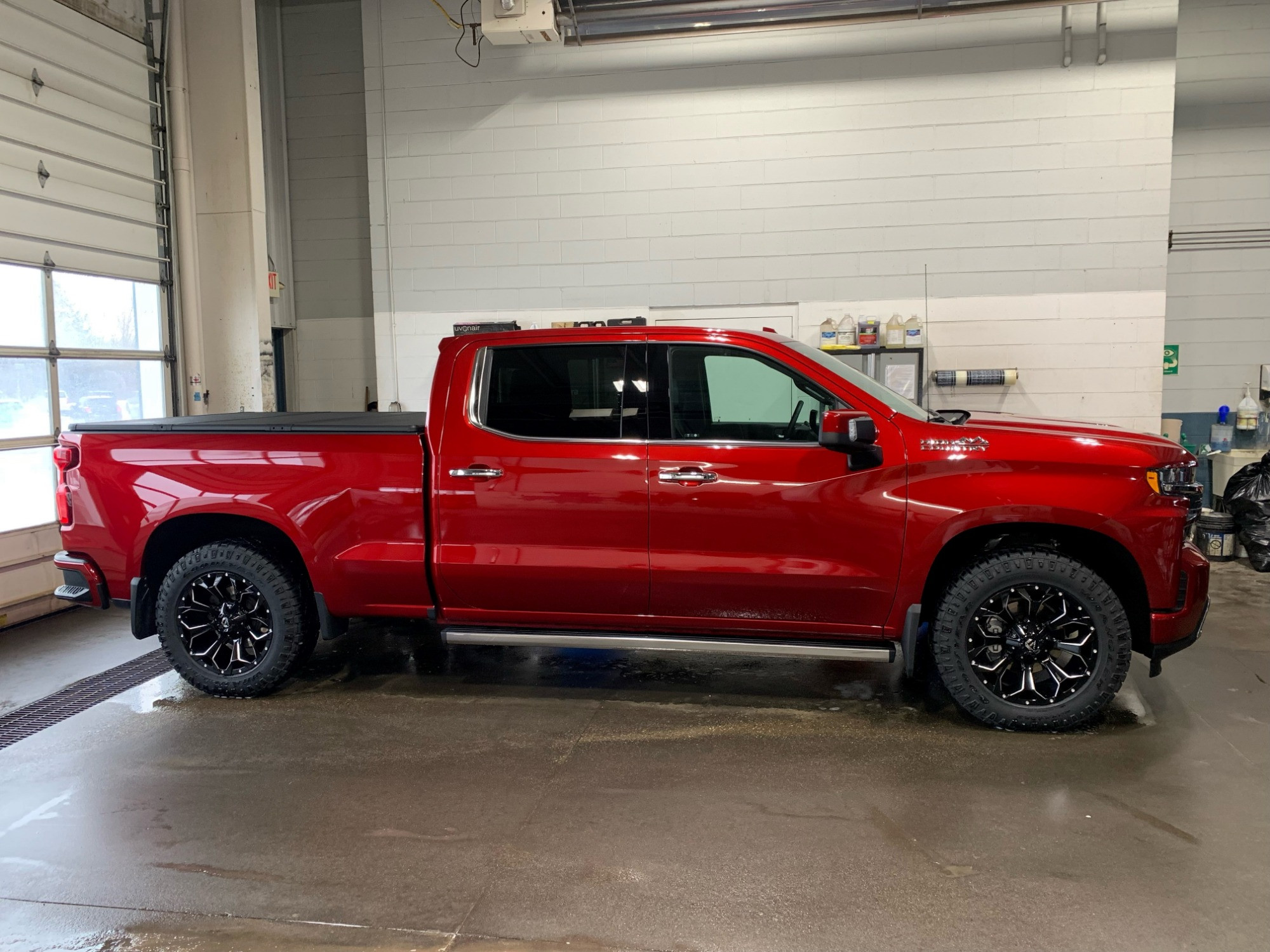

Stock Suspension Fitment
The proven stock-height formula: 20x9 +20 on 275/60R20
The most common setup for this generation on stock suspension. The lower offset pushes the wheel out for a more aggressive stance than the factory look, with zero rubbing and zero trimming.
Small wheel, big tire: 18x9 +0 on 255/70R18 | Daily driver: 20x9 +20 on 275/60R20 | Big wheel, small tire: 22x10 +24 on 285/45R22 (may require plastic trimming)

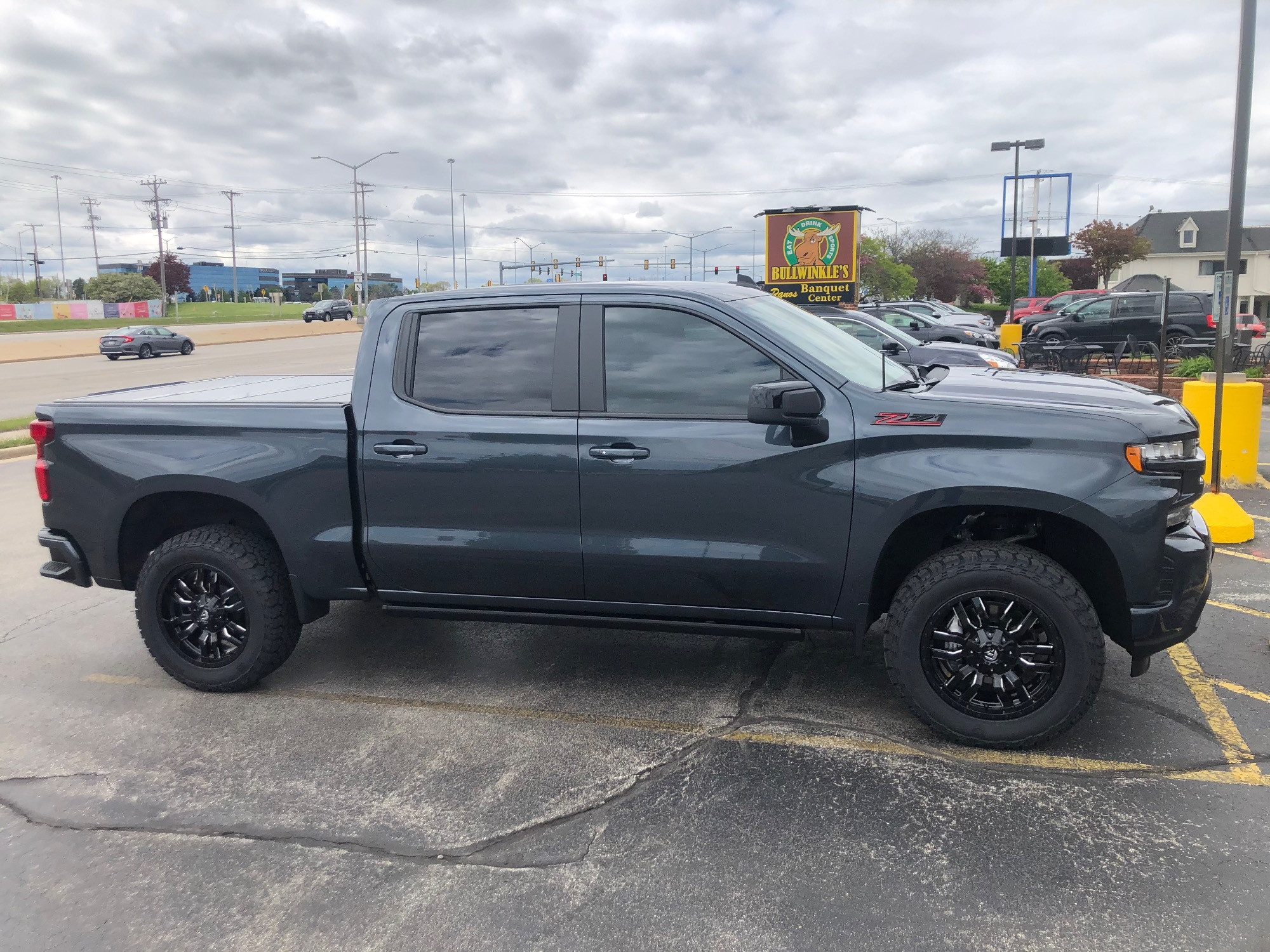

Leveling Kit Fitment
Level it and step up to 285s
Leveling kits are the most common suspension upgrade on this truck: easy install, kills the factory rake, and buys room for a slightly larger tire. The go-to package is 20x9 +19 on 285/60R20.
Small wheel, big tire: 18x9 +1 on 275/70R18 | Daily driver: 20x9 +19 on 285/60R20 | Big wheel, small tire: 22x10 -18 on 305/40R22 (may require plastic trimming)

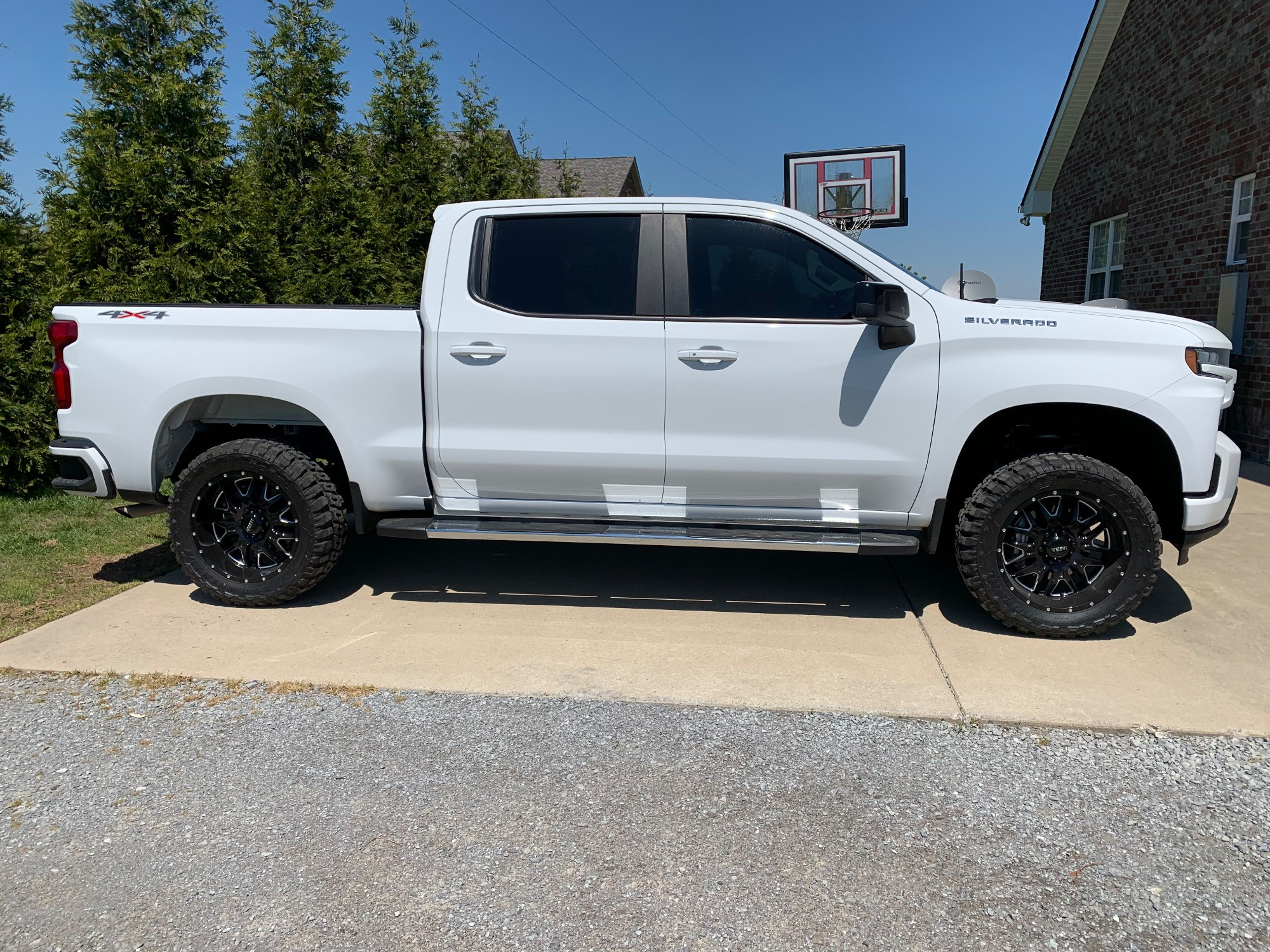

3-Inch Lift Fitment
Three inches buys you 33s without the rubbing drama
A 3-inch kit opens the door to true 33s with negative-offset stance. The most popular package at this height: 20x9 -12 on 33x12.50R20.
Small wheel, big tire: 18x9 +1 on 33x12.50R18 | Daily driver: 20x9 -12 on 33x12.50R20 | Big wheel, small tire: 22x12 -44 on 33x12.50R22 (plastic trimming required)

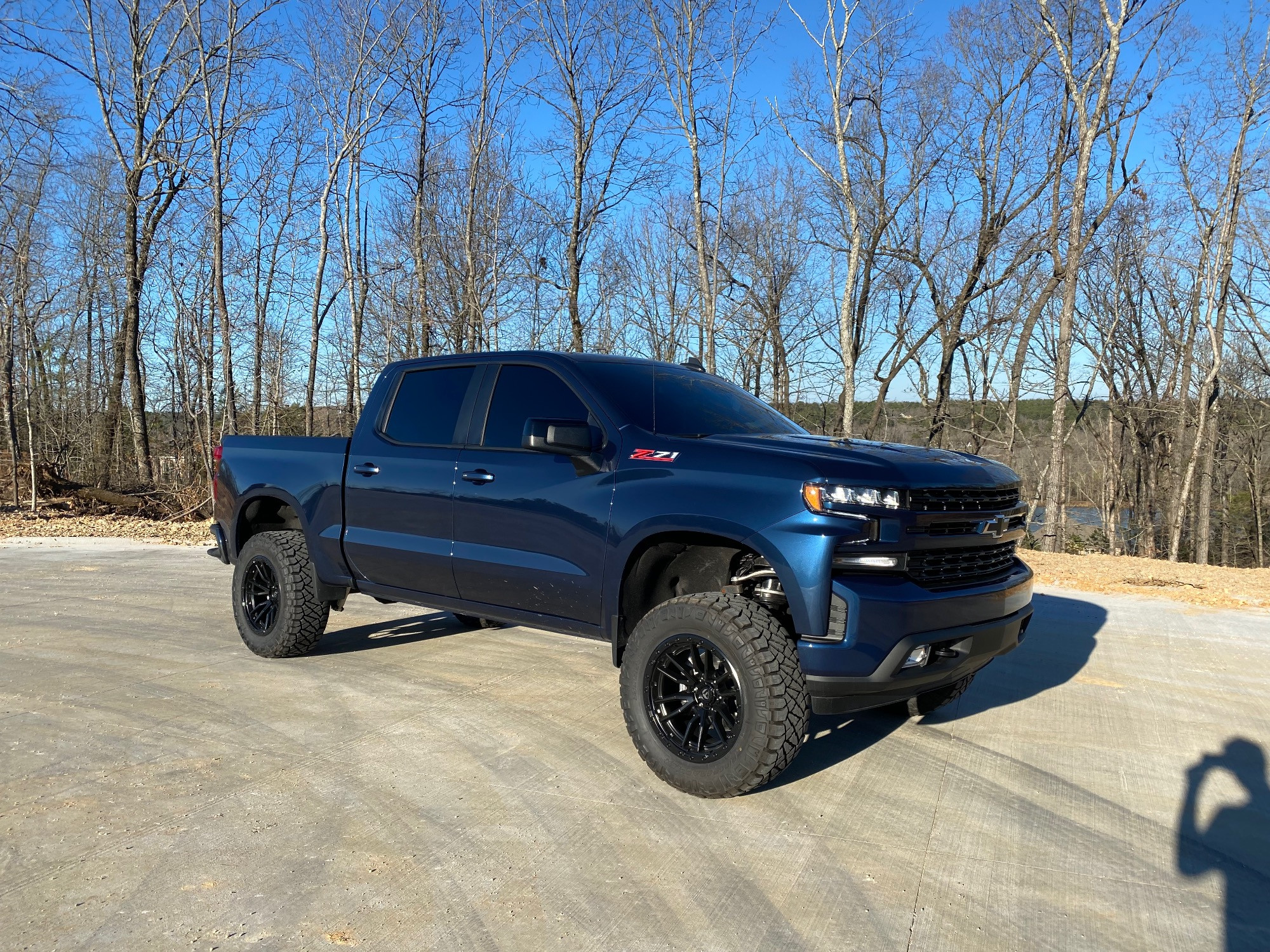

4-6 Inch Lift Fitment
The big-lift look: 10-wides and 35s
A 4-to-6-inch kit changes the whole conversation: 10-inch-wide wheels clear easily, 35s become the standard, and the selection gets enormous. The crowd favorite at this height is 20x10 -18 on 35x12.50R20.
Small wheel, big tire: 18x9 -12 on 35x12.50R18 | Daily driver: 20x10 -18 on 35x12.50R20 | Big wheel, small tire: 24x12 -44 on 35x12.50R24 (6-inch lift + minor trimming required)
Trail Boss and ZR2: The Factory Head Start
Two trims come pre-gamed from Chevy. The Trail Boss ships with a 2-inch factory lift on 275/65R18s (roughly 32s), which means it fits like a leveled truck out of the box; treat the leveling-kit recommendations above as your starting point. The ZR2 runs 275/70R18s (roughly 33s) on DSSV dampers with more aggressive geometry, so it starts where the 3-inch-lift column ends. Both trucks share the same 6x139.7 pattern and 78.1mm bore as the rest of the lineup, so the wheel catalog is wide open.
Frequently Asked Questions
What bolt pattern is a 2019+ Silverado 1500?
6x139.7mm, also written 6x5.5 inches, with a 78.1mm hub bore and M14x1.5 lug nuts. It's shared across the whole generation and with the 2014-2018 truck.
What's the biggest tire on a stock 2019+ Silverado?
275/60R20 (about 33 inches tall in the 18-inch flavors) is the safe ceiling on stock suspension. A simple leveling kit buys you 285s; true 33x12.50s want 3 inches of lift.
Will 35s fit a leveled Silverado?
Ambitious. 35s on just a level typically means rubbing and real trimming; the clean path to 35s is a 4-to-6-inch kit. The ZR2 gets closest from the factory at roughly 33 inches.
Do 2014-2018 Silverado wheels fit the 2019+ truck?
Yes; same pattern and bore. Verify the offset works with your suspension height, and check the 2014-2018 guide for that truck's sweet spots.
Setups reflect real customer builds; exact clearances vary by trim, tire brand, and driving. Our team verifies every package against your truck.
